1080p full hd MJPEG 30fps 60fps 120fps high speed CMOS OV2710 Wide angle Mini CCTV Android
Click to see details
1080p Full Hd MJPEG 30fps 60fps 120fps High Speed CMOS OV2710 Wide Angle Mini CCTV Android

1080p hd mini micro camera mjpeg usb2.0 uvc webcam module ELP-USBFHD01M-L36

98 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $38.01 / piece
Sale Price:  US $35.35 / piece
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

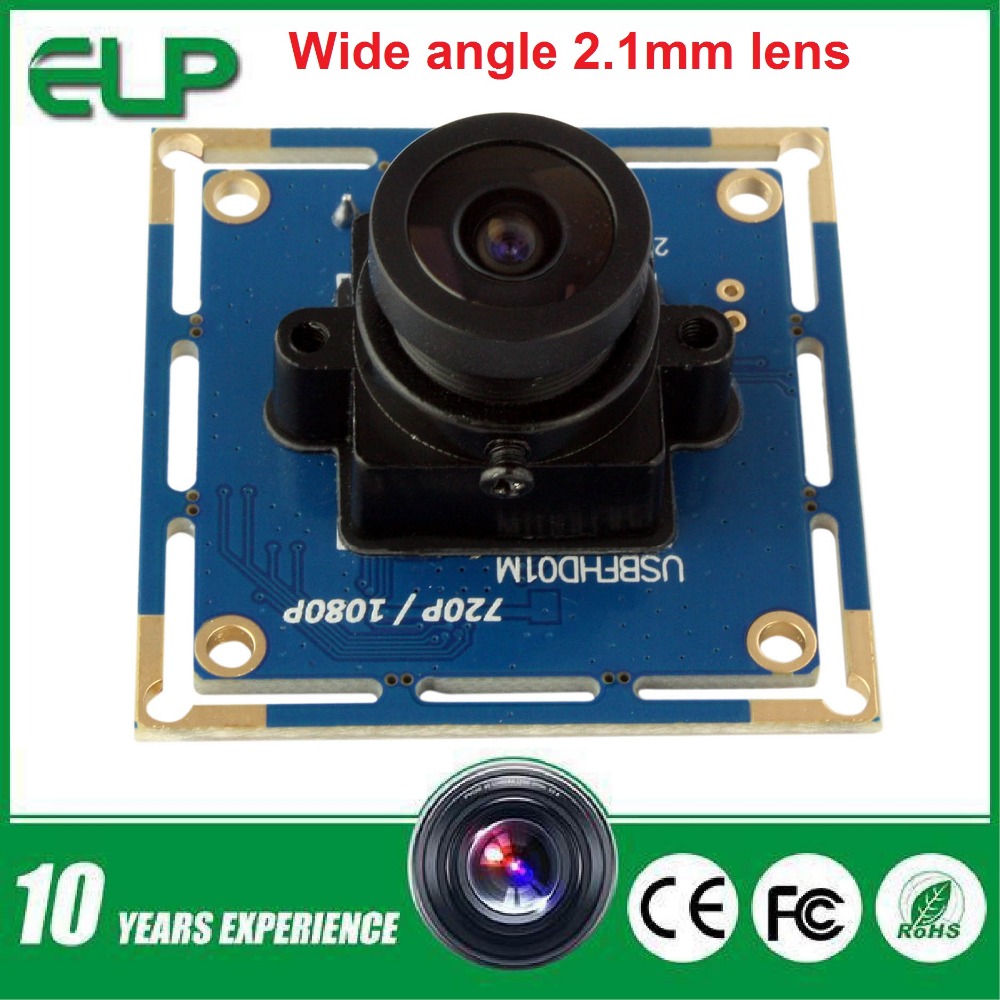

1080p full hd MJPEG 30fps/60fps/120fps high speed CMOS OV2710 Wide angle Mini CCTV Android Linux UVC Webcam Usb Camera Module

Notice:

1) If you want to lock this camera to 60fps @ 720P or 120fps @480P , please tell me in advance, will customize the camera you need.

2) if you need test software, please leave me your email. .

Packing inludes:

1) 1PC 2mp usb camera module with 2.1mm lens (2.8/3.6/6/812mm lens optional)

2) 1PC 1m usb cable

*High Speed 1080P HD USB Camera
*Equiped with 2.1mm wide angle lens
*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS 1080P sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 60 fps in 1280X720 resolution,30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.

Optional models

ELP-USBFHD01M-L21

Sensor

1/2.7″ CMOS OV2710

Lens size

200W, 2.0megapixel, 1920(H)x1080(V)pixels

Max. Resolution

1920X1080

Picture format

MJPEG

USB Protocal

USB2.0 HS/FS, USB1.1 FS

Support free driver

USB Video Class(UVC)1.1

Auto exposure AEC

Support

Auto white blance AEB

Support

Frame rate

1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps
800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps
640 (H)x 480 (V) pixels MJPEG 120fps YUY2 30fps
352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps
320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fps

Adjustable parameters

Brightness/Contrast/Color saturation /Definition/Gamma/WB

Night vision

optional, can choose IR board

view angle

150degree

voltage

DC 5V

current

150mA

work temperature

DEGREES(-20~70)

Size

32x32mm/38*38mm

Support OS

WinXP/Vista/WIN7/WIN8
Linux with UVC
Mac-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above

Megapixel wide angle 2.1mm board lens ( 2.8/3.6/6/8/12mm lens optional) with M12 lens mount

Highly advanced image sensor 1/2.7” CMOS OV2710

High frame rate: realize 30fps at 1080P, 60fps at 720p, 120fps at 480p.

High spped usb 2.0 interface. 1m/2m/3m/5m usb cable optional

Support OS: WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above

Support connection with following mobile phone ( We tested) :

If you need otg connection cable, please leave me message under your order, I will send otg cable together with the camera .

Samsung NOTE3

N9002 Unicom Verified

Samsung S4

I9505 Hong Kong version Verified

I9508 Mobile Verified

Samsung S5mostly support, Some models have been verified

MIUI M4 Verified

ZTE S291 Verified

Mini size, easy to install and use for security or in different prototypes: 32*32mm/38*38mm

2MP usb camera paper picture:

Outdoor true and undistorted color image:

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
