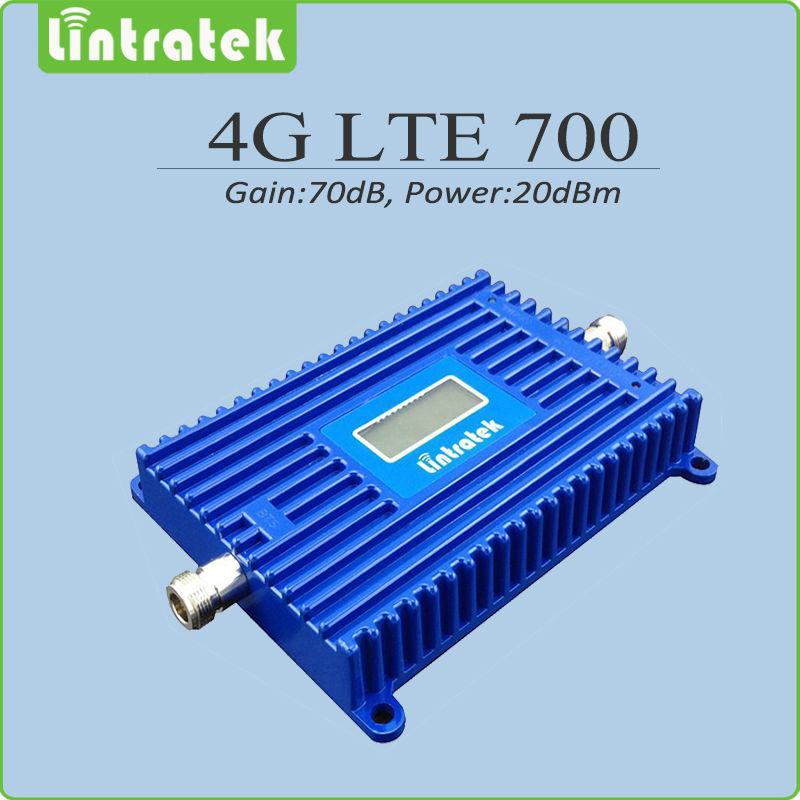

4G Signal Booster gain70dB 4G LTE 700Mhz Signal Booster Repeater LTE 700 mobile signal repeater with
Click to see details
4G Signal Booster gain70dB 4G LTE 700Mhz Signal Booster Repeater B13 700 LTE mobile signal repeater

4G Signal Booster gain70dB 4G LTE 700Mhz Signal Booster Repeater LTE 700 mobile signal repeater with Lcd display

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $48.00 / piece
Sale Price:  US $39.36 / piece
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

lte booster repeater 4g lte 4g lte signal booster 4g lte phone 4g lte repeater 4g lte booster repeater 4g booster

4G Signal Booster gain70dB 4G LTE 700Mhz Signal Booster Repeater LTE 700 mobile signal repeater with Lcd display

Specification:

Model No.: KW20L-LTE-700

1.Work for 4G LTE 700mhz signal repeater.

2.With LCD can indicate the signal status

3.High linear design,ALC technology

4.1000sqm coverage without barrier

Product Feature:

1.High linear design,with LCD display.Little interference to BTS

2.Provide quick coverage solution for small signal weak & block zones,reduce drop/off calls.
3.Compact size, low consumption, easy installation, great cover.
4.Cover about 200~1000 m⊃2; without block or obstruct.
5.Reduce cellphone transmit power.

6.Suitable for all countries

7.Easy to install

Product Detail:

Single Band Repeater With LCD

Model KW20L-LTE-7
Frenquecy Range

UplinK:746~7560MHz

Downlink:777~787MHz

Working System 4G LTE 700mhz repeater
Gain 70dB
Output Power 20dBm
Bandwidth Wide Band
Ripple in Band ≤4dB
Noise Figure @ Max.Gain ≤7dB
V.S.W.R ≤3dB
MTBF >50000Hours
Power Supply AC:110~240V; DC:5V 1A
Power Comsumption <3W
Impedance Matching 50ohm

Mechanical Specification

RF Connector N Female N
Cooling Heatsink Convection Cooling
Dimension 200*110*25(mm)
Weight 0.9KG
Installation Type Wall Installation
Environment Conditions IP40
Humidity <90%
Operating Temperature -10°C~55°C

Pakage including:

1X Signal booster for 4G LTE 700Mhz

1X Charger EU Plug (AU/UK/US Adapter will come with the item according to your shipping address)

Ways to check signal strength:

1.Check outdoor signal strenght by your smart phone,Access to “Seting “—–“About Phone(about equiment)” can find some information about website and signal streght to check your place signal status.

2.Signal strenght it is better that much than -70db or -65db , the repeater can work well.

In order to achieve good results,please do pay attention on the following notes:

1. Please make sure distance above 10M between indoor and outdoor antenna, it’s better divides one from another by a wall. try your best to keep the distance between outdoor antenna and indoor antenna as far as possible.

2. Please try to choose a good signal place to set up outdoor antenna. install the outdoor antenna on the highest point of your building as possible as you can.

3. Please make sure that there are good signal 4-5 bars on your outdoor, or it will not work on your room.

Shipping:

1. Goods will be shipped to you provided on Aliexpress, please confirm address clearly before order.

2. After confirm payment, we will confirm your address again through e-mail. if there is something wrong, contact us immediately, on reply will be takes as the correct address, and shipping . We are not able to responsible for the invalid address, and we do not accept any change after we sending out the goods.

3. Please provide your phone number also in case of something happen delay the delivery time.

4. We will shipping out the goods within delivery date after confirm payment.

5. We will tell you the tracking number after we shipped your goods. You can check your goods after 24 hours (Express need some time to refresh information in website)

6. We ship goods to many countries via DHL, Fedex, UPS, EMS for heavy machine, you can choose the save cost way like China Post Registered Air Mail(less than 2kg and much slower than others ways, may takes 50-90 days arrival High risk).

Payment:

1. We accept Escrow and Bank Transfer(need to pay extra fee)

2. Before order, please check your shopping cart clearly and make sure you will pay for them.

3. Without paying buyer will be complained.

4. After you paid. it will takes 24 hours to processing, after confirm the payment, we will prepare items.

Return policy:

1. 1 year guarantee(validness from the purchase date)

2. We can’t accept refund without quality problem. If the item have quality problem please contact us within 3 working days from the date your received the parcel.

3. Please keep the return goods as original package, and shipping with tracking No.

4. Please write down your Aliexpress ID, address, phone number item, the way you paid and your problem in a paper with the return goods.

5. For the back and forth surcharge and the freight, are buyer’s responsibility.

Feedback:

1. If you are satisfied with our goods and service, please lease 5 Star positive to us. You feedback is very important to us encourage us keep on ^^ !

2. For any reason you are not pleased with us, please contact us before left a neutral or negative feedback, we will do the best to solve you problem as soon as possible.

3.Communication connect with everyone. we do believe. Feel free to contact us with your patient via trademanager, email, please allow us to resolve your problem in good way.
