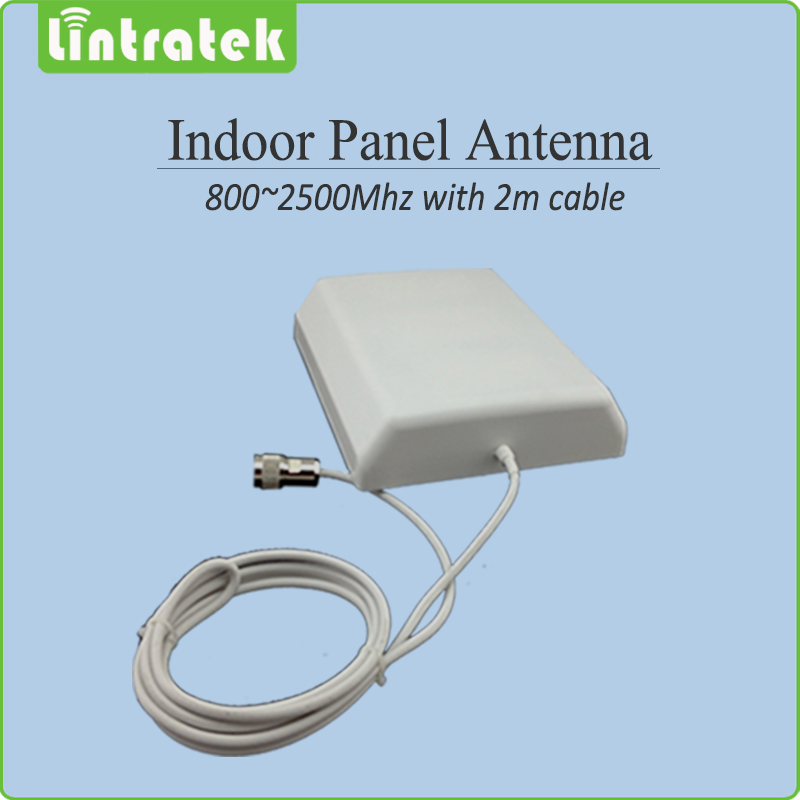

800 2500mhz 2G 3G Indoor Panel antenna with 2m cable indoor Antenna for Mobile Signal Booster
Click to see details
700 2700MHz 2G 3G 4G Indoor Panel antenna with 2m cable indoor Antenna for Mobile Signal

800-2500mhz 2G 3G Indoor Panel antenna with 2m cable indoor Antenna for Mobile Signal Booster

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $9.80 / piece
Sale Price:  US $7.84 / piece
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

gsm repeater gsm booster gsm 900 booster signal booster gsm 900mhz booster signal gsm

800-2500mhz 2G 3G Indoor Panel antenna with 2m cable indoor Antenna for Mobile Signal Booster

Product Detail:

Frequency range:800-2500mhz

Gain:8dbi

Beam width:70

VSWR: less than 1.5

Connector: N male

Weight:0.6KG

Type: panel antenna

Mounting : Wall

Usage: indoor antenna

Match up with gsm 900 cdma850 dcs1800 pcs1900 wcdma 2100 signal repeater

Indoor Panel Antenna

Model IBG-8NK-80/250-2
Frenquecy Range 800~2500MHz
Bandwidth 262/990Mhz
Gain 8dBi
Beamwidth H:70° E:60°
F/B Ratio ≤18dB
V.S.W.R ≤1.5
Polatization Horizontal or Vertical
Max Power 100W
Nominal Impedance 50Ω

Mechanical

Connector N Female or Customized
Dimension 225*185*50mm
Weight 0.8KG
Rated Wind Velocity 60m/s
Mounting Kits L Bracket & U Bolts

Suitable place:

Working principle:

1.Outdoor antenna received the signal from signal tower.

2.Then,through cable sent the signal to the indoor repeater.

3.The repeater accepts and improvs the signal.

4.After that,the fine signal goes into indoor antenna,via cable to your mobile phone.

Installation step:

1.Fix up outdoor antenna(log period antenna) on the housetop and point to signal tower.

2.Connect outdoor antenna to “BTS” in repeater via cable.(Notice:the machine must be away from outdoor antenna for more than 10 meters)

3.Connect indoor antenna(ceiling antenna) to”MS” in repeater via cable(the machine must be away from indoor antenna for more than 1 meters)

4.Plug the power adaptor,power light will be lighting ,when the outdoor antenna receive the strong signal the LCD will be display the signal

Please note that,when you find signal twinkling and have no full signal display that means have no signal input and you need to check your outdoor antenna position.

Common problems and soluton:
