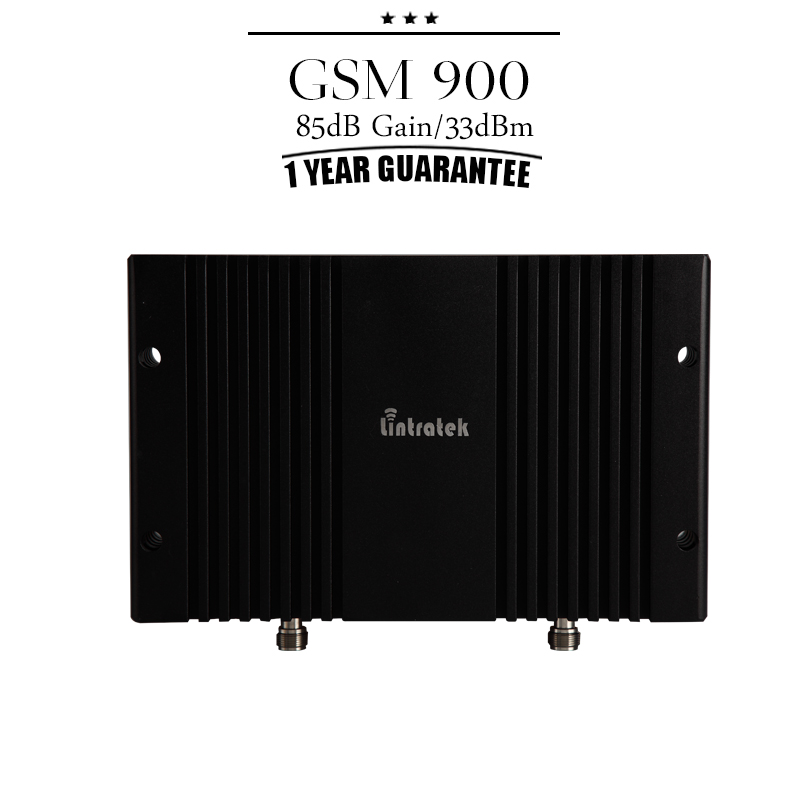

Lintratek GSM 900mhz 85dB Gain 33dBm Large Power Cellphone Signal Booster GSM Mobile Cellular Repetidor Amplificador For Project
Model No.: KW33F-GSM
1.New design Repeater in 2016
2.Coverage: cover more than 1800sqm without barrier,but one antenna mostly can cover 200 square meters. This repeater can work with 10-12 indoor antennas.
3.GSM 900 signal booster ,expand GSM 900mhz signal.
4.85dB high gain, 33dBm power, can go through the barriers easier.
5.Easy to install.
6.bare device,without antenna
7.With AGC MGC ,Gain Control freely.
8. 1 Year Guarantee
1.High linear design,ALC function,low interference to BTS.
2.Compact size,low consumption,easy to install,great cover.
3.Expand signal coverage where signal is weak,suitable for home use.
4.Improve your mobile signal ,no more bad reception,no more dropping calls .
5.With LCD display function. Note: This is the Bare Device ,without Antennas Please make sure your outdoor signal is good enough,signal strength much than -70db is better.
Parameter Sheet :
|Device can work perfectly in condition of Outdoor signal strength more than-70db or -65db|
|Working System||GSM 900mhz|
|Frequency Range||Uplink:890-915mhz Downlink:935-960mhz|
|Ripple in band||less than 6db|
|Power supply||AC:100-240V,50/60Hz DC:9V 3A|
|Power comsumption||less than 20 W|
|RF connector||N female|
|Matching Antenna type||N Male|
|MTBF||more than 50000 hours|
|Feature||High Output Power, High Gain.|
1.GSM 900mhz Repeater
2.AC Power Cord
1.Fix up outdoor antenna reception on housetop or the high place and point to signal tower .
2.Connect outdoor antenna to repeater machine ”BTS” port via cable.
3.Connect indoor antenna to repeater ”MOBILE ” port .
4.Plug AC power cord into power source and finished.
Note: You should put outdoor antenna far away from indoor antenna. They should be separated by walls or barriers.
When outdoor antenna and indoor antenna are separated not enough, then it will be self-oscillation. Your phone will not get any signal.
We can ship goods by EMS,UPS,DHL,FEDEX ,China post registered air mail.
Express Advantage and Disadvantage ,please choose carefully depend on your situation.
Please Notice :Brazil Customer we need your help is that provide us your Tax No.we can not ship to brazil without Tax No.
Russian Federation Customer please provide us your full name,in order to keep you get your goods succesfully.
EMS:can ship to many of countries.like Ukraine,Russian Federation,Brazil takes 15-22days
More expensive than china post ,but faster than china post.With Tracking No.
UPS: can ship to a part of countries,Expensive freight ,takes7-10days arrvial .With Tracking No.
DHL: can ship to many of countries ,except Russian Federation,Ukraine,Brazil. takes3-5 days arrival.
Fast delivery,high efficiency.Expensive .Need add the additional charge for the remote place.Can trace with tracking No.
Fedex:can ship to many ofcountries,except Russian Federation,Ukraine,Brazil.takes5-7 days arrival
It is better to provide your company name.Canada,United States Area need to pay USD5 extra if the area belongs residential community.And add the additional charge for the remote place.Can trace with tracking No.
Honkong Post Mail(less than 2kg): cheap frieght,faster than china post .Can not trace the parcel situation till arrive at the destination.Ps:with tracking No.
Shipping Terms :
Items are only shipped after payment confirmed.(normally 2 days)
1.After verification the payment,we will shipping within 48-72hours except holiday.
2.We just ship to the correctly address depend on the aliexpress you registering ,when your place an order please write down your matching address .If you want to change sent to other place ,please contact us before biding .
3.Please note that,delivery time is probable,If you have not receive your goods in arrival day after payment,please contact us before dispute,please give us a chance to check the reason and solved the probem .
4.All goods from ours are checking before shipping to confirm safety and can working .
1.We accept escrow and banking transfer.
2.We accept refund if there is qualility problem(sent us the picture to evidence the problem),but need to return the goods with the original package,and the buyer need to pay for the back and forth freight.
3.Our product can boost the fine indoor signal,only if your outdoor signal is perfect,Please make sure Your side outdoor signal is good,if not, our device can not expand anything you expect.
4.Regarding to the PI declare value,we can write the value as your requirement to help your side custom clearance.
