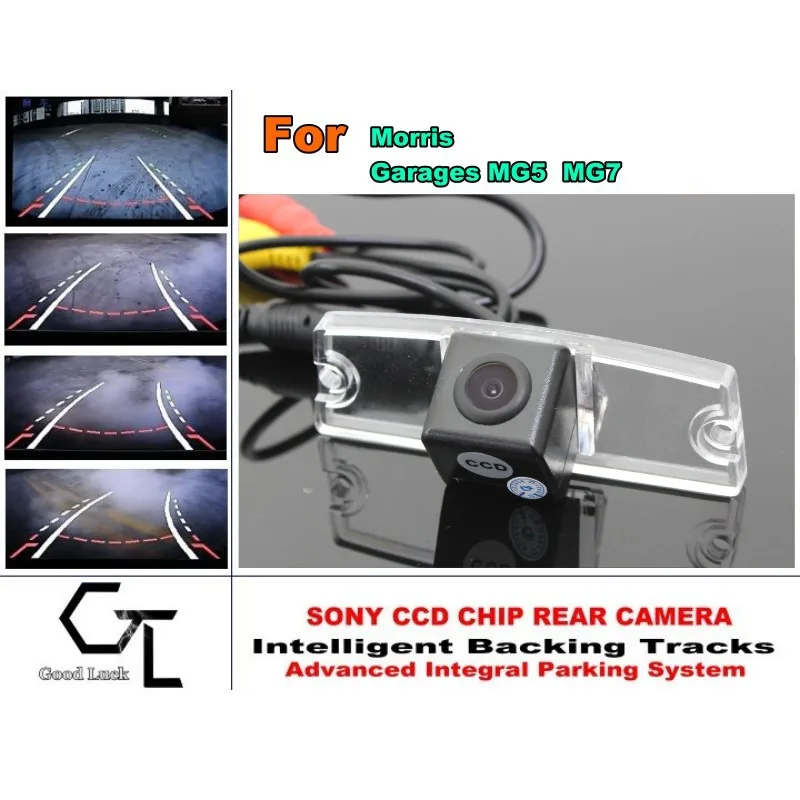

Car Rear View Back Up Reverse Camera
Japan imports HD CCD CHIP Intelligent Backing Tracks
Directive Parking Assistance Tracks / Integrative Dynamic Path
For Morris Garages MG5 2012~2015
For Morris Garages MG7 2007~2014
No path box, no CAN/OBO interfaces, camera built-in reversing axle module.
Imported chips CCD, picture clarity, stability, good night vision
170 super wide angle lens, waterproof, dust-proof, anti-fog, shock-proof
Camera track principle:
built-in gyro sensor, Auto-sensing body direction, Generate dynamic track To the image map.
Special Notice :
All over the world there are many automobile factory , and the same car model accessories maybe with different accessories , we only sure the cameras fit the cars sales in China, but most of the cameras fit for other countries. You have better to confirm if it fit on your cars according to the Size before you order. Or you can connect us to confirm too.
High Quality Camera For Car | RCA Connector | Night Vision CCD | 20M Waterproof | For Rear View Back Up Assist System
- only Support NTSC
- Image Sensor: 1/3 â€œOV Color CCD PC3030
- Effective Pixels:PAL 656(H)x582(V);NTSC 656(H)x492(V)
- Horizontal Resolution: 420 TVL
- Minimum Illumination: 1.0Lux F =1.2 (OLux with IR on)
- Night Vision: 5-10 meters
- Lens: 1.85mm
- Diagonal Viewing Angle: 120 degree (left to right) 170 degree(up and down)
- Synchronization:Internal synchronization
- Signal to noise ratio:>48dB
- Electronic Shutter:Auto
- Video Output: RCA interface,1.0Vp-p,75Ohm
- White Balance:Auto
- Backlight compensation: Auto
- Power:DC 12V
- Current Consumption: 50-60mA,Max 130mA with IR on
- Operating Temperature: Temperature -20 ~ +60,RH95% Max
- Storage Temperature: Temperature -30 ~ +80,RH95% Max
- The Water-Proof: IP66
- Video cable is RCA connecto
- Package includes:
- 1 x CCD Dynamic track Car Rear View Camera
- 1 x 6M video & power cables with power relay and switch wire
- 1 x user manua
