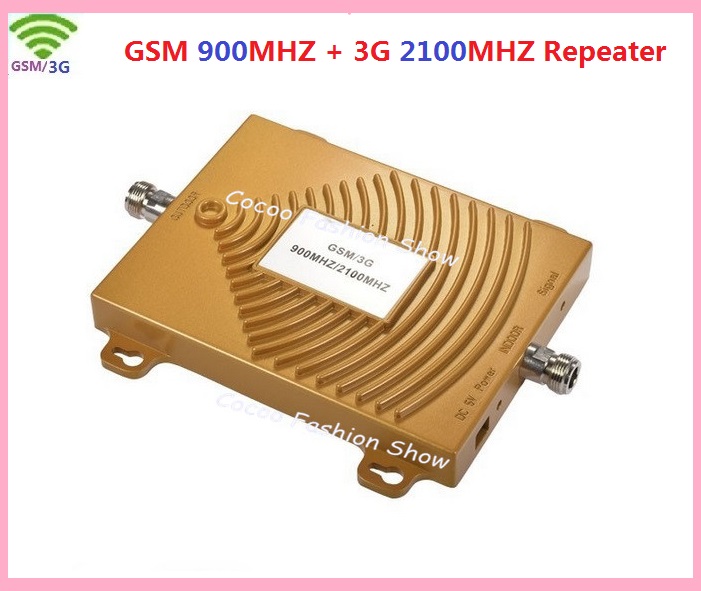

GSM 3G Repeater ,Dual Band Booster 65dbi Mobile Signal 3G GSM Booster 900 /2100 Amplifier , 3G GSM Mobile Phone Signal booster
*Name of item: Signal Amplifier Repeater
*Color : Yellow
*Working frequency :Up Link:890-915MHz. 1920-1990MHz; Down 9Link:935-960MHZ,2110-2180MHz;
*Gain:Up Link:55dB;Down Link:60dB
*Max Output Power:+17dBm/Total power
*I/O impdeance:50 Omega
*Power supply:AC 110/220V(used AC/DC Adapter 5V DC)
*Compact Design: Indoor Use
*High gain,easy installation and operation
*Full-duplex,single port design,built-in power supply
*Use ALC technology,adjust extent automatically
*LED Light working &signal condition indicators
*Big linear power,control intermodulation & scatteration stably
*Dependability stand by GB6993-86 Standard
*Compatibility of electromagnetism according with ETS300 609-4
*CE and RoHs approved
1* GSM 3G Dual Band Repeater
1* Charger (We send EU adapter, if you need additional adapters, please leave a message, thank you!)
1* User manual
*To use this product to enlarge your signal, the outdoor signal shall be as good as possible .The product will not work good if our outdoor signal is not good or bad .
*if you want to cover more than 1000SQM, you need connect 4-6 indoor antenna at least, the signal cover area is different in different place.
*The Post Air Mail takes about 20~45 working days to deliver, sometimes takes about 60 working days. If you did not get your item after long time, please DO NOT open any dispute, Please contact us to extend time for your order and report to post office.
*Damaged on Arrival: When you sign the parcel, please check it carefully. You’d better take a video or photos when open it. If there is any damage or shortage for your parcel, contact your Post Office or Express company immediately, Please send video or photos to our service staff at the same time. DO NOT open any kinds of claim at aliexpress, We will extend time for your order once you reported to us and give you a satisfied solution.
How Booster/Repeater Works?
Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with
the weak or bad signal and to amplify these low signals in order to provide you with the
communication suitable for you.
The repeater makes the signal stronger in places with poor signal coverage such as:
1) Underground areas: basements, parking lots, tunnels;
2) Other places where cellular signal is shielded by metal or concrete walls:
offices, supermarkets, cinemas, hotels;
3) Places distant from the BTS like private houses.
Steps that describe the work of Repeater.
1) The outside antenna receives the signal from the nearest mobile base station.
2) The outside antenna sends the received signal through the coax cable to
the installed Repeater.
3) The Repeater accepts the low signal and improves it.
4) The improved signal goes to the inside antenna through the connection coax cable.
5) The inside antenna send the improved good signal to your mobile phone.
1) Fix up outdoor antenna reception on housetop
or outside the window and point it to the signal tower.
2) Connect outdoor antenna to “BTS” port in repeater machine through cable.
3) Connect indoor antenna(s) to “MOBILE’ port in repeater machine through cable also.
4) Plug power adaptor into AC power socket and finish installation.
1) If still no signal receipt after activated repeater,
please check if outdoor antenna point to signal tower
or elsewhere have strong signal and check if strength achieve -50DBM.
2) If can not call out, please adjust the direction of outdoor antenna.
3) If strength is not steady, please check if outdoor & indoor antennas are too close.
Please ensure the outdoor and indoor antennas have distance of 10 meters at least,
with a wall between and not in a same horizontal line.
